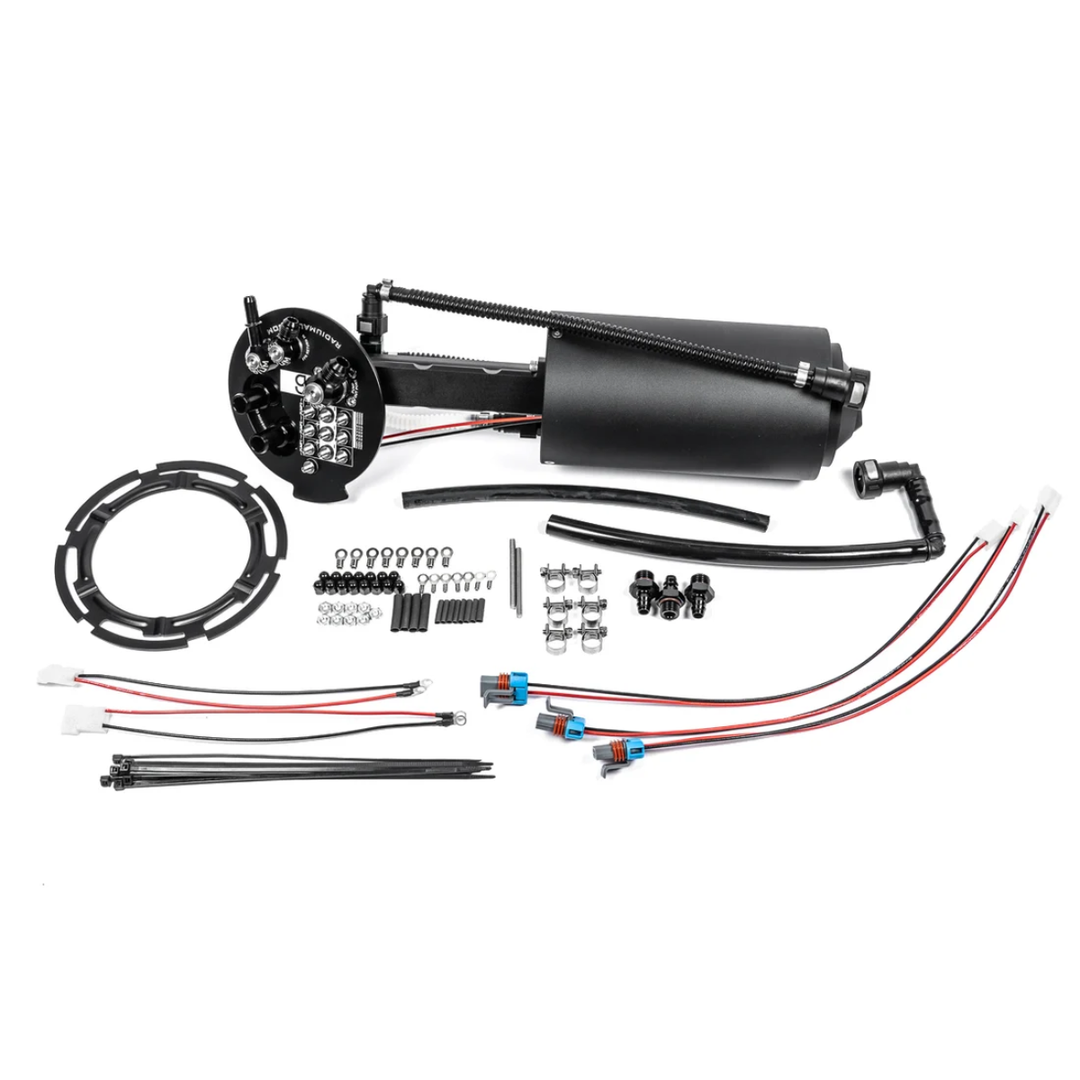

Radium Engineering C8 Corvette Stingray Fuel Hanger Surge Tank

Fits Walbro F90000267/274/285, DW440

Overview

The Radium Engineering fuel pump hangers permits the use of 1, 2, or 3 aftermarket pumps in the stock RH C8 Corvette fuel tank. There are 3 common ways to configure this fuel system; Direction injection only, direct injection with port injection, and direct injection with port injection while using this hanger as a true surge tank. Furthermore, it is compatible with brushless fuel pumps.

To simplifying aftermarket -AN hose plumbing, the 10AN ORB threaded feed port features a low profile 8AN male fitting and the 8AN ORB threaded return port features a low profile 6AN male fitting. A 3/8" SAE quick connect fitting is provided if using the hanger as a surge tank.

Key Features

• Drop-In Surge Tank into RH tank
• Permits 1-3 Fuel Pumps
• Jet Pump for Starvation Protection
• 10AN ORB Outlet Port with 8AN Fitting
• 6AN ORB Return Port with 6AN Fitting
• 6AN ORB Lift Pump Port with Q.C. Fitting
• Fuel Starvation Protection
• High Current Electrical Hardware
• Compatible with Various Pumps
• Brushless Pump Compatible
• Anodized Aluminum Construction
• Anti-rotation Electrical Terminals


Included

• 8AN Male Fitting for Pump Outlet
• 6AN Male Fitting for Aftermarket Return
• 8.5mm Barb Hose End for OEM Return
• 6.5mm Barb Fitting for OEM Vent
• OEM Fuel Sensor Mount
• Venturi Siphon Jet Pump
• Fuel Resistant Submersible Tubing
• Fuel Resistant ETFE Insulated Wiring
• Stainless Hardware
• Pump Inlet Filtration


Compatibility

• 2020+ C8 Stingray
